Fully-featured compact digital mixer
| Inputs: | 20 analog inputs: 16 mic preamps and 4 line inputs |
| Outputs: | 12 balanced outputs + phones |
| MIX Buses: | 8 + 2 main output |
| Output processing: | GEQ, PEQ, Delay, Compressor / Limiter |
| Internal effects | 4 buses: 2x Reverb, Delay, Modulation |
| USB interface | 24 in / 24 out @ 24bit 48kHz |
| SD Multitrack recorder | 20 in / 20 out @ 24bit 48kHz |
| Signal Processing: | 32 Bit Floating Point |

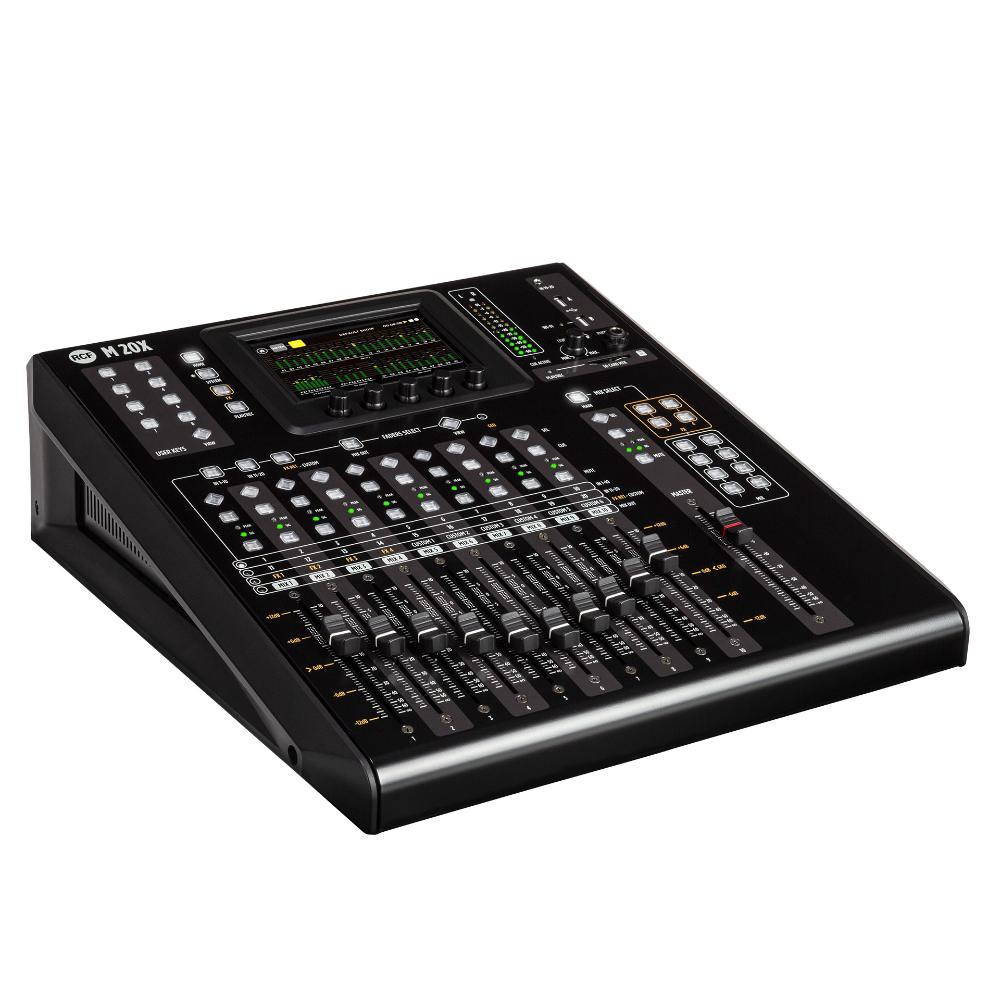

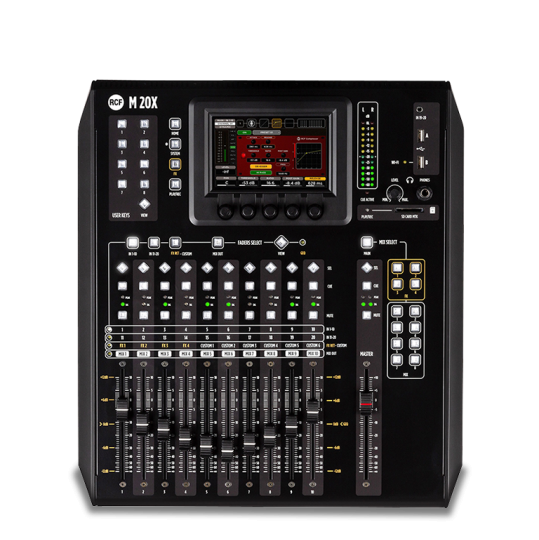

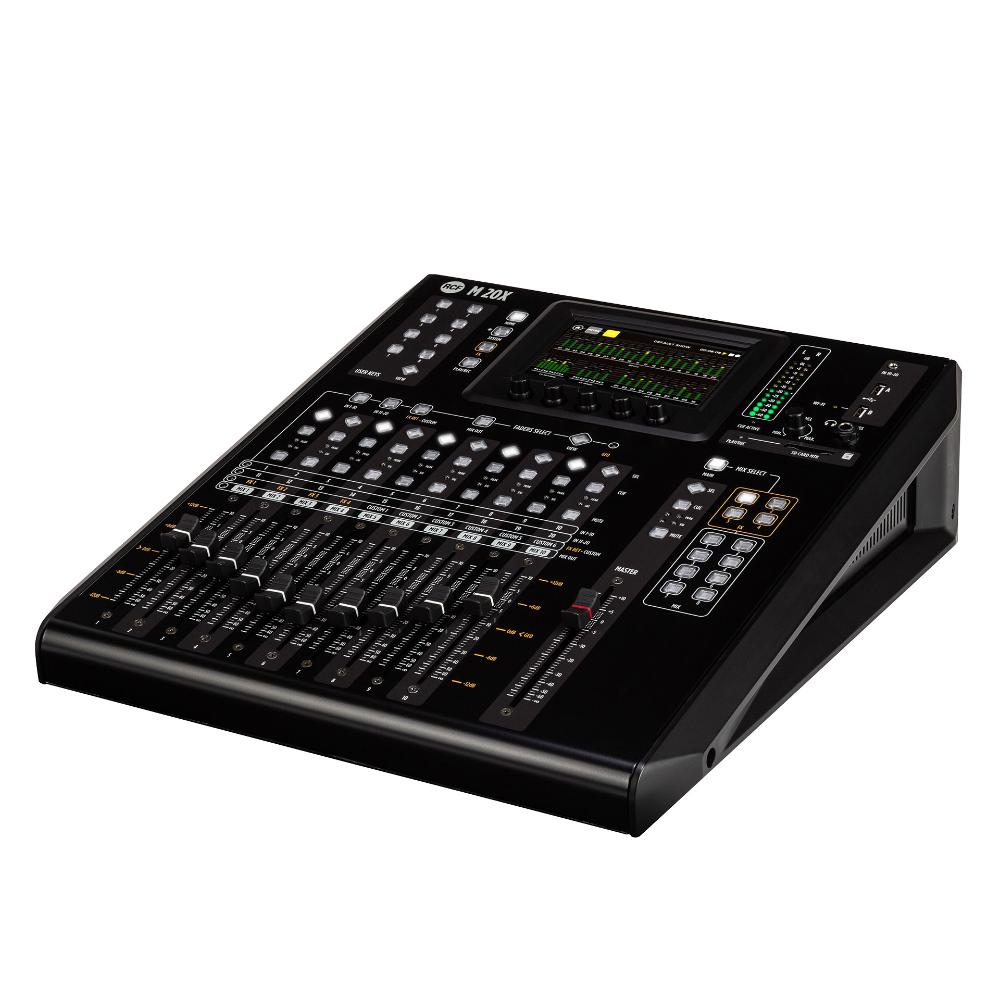

M 20X is a fully recallable mixer, with 16 remote controlled preamps and 11 motorized faders. Despite its dimensions, the M 20X packs a whole suite of capabilities, such as high-profile preamplifiers, top of class DSP with studio-quality processing, WiFi remote control and a comprehensive set of multitrack recording and playback functions. The mixer offers a total of 20 analog inputs and 14 output channels, between the balanced analog outputs and the AES/EBU digital output.
- 20 analog inputs, 16 mic preamps and 4 line inputs
- 12 balanced outputs + phones
- 20-tracks sd card play/rec
- 24 x 24 CH USB Audio Interface (24-bit/48 kHz)
- 11 motorized Faders
- Smooth User Interface with 5” Touchscreen
- AES Digital Output
- LAN / WiFi Remote Control
Designed for Professionals
Touring grade metal construction and reliable electronics, for the best durability over time. High contrast graphics and knobs, premium quality connectors and long-lasting controls increase both functionality and durability over time. The universal voltage power supply makes it perfect for worldwide use, providing the ability to travel safely with your mixer, everywhere.
Speed up your workflow
The M 20X user interface has been designed so that every parameter is reachable within a few actions.
- User keys: A set of 8 User Keys with extensive programming options is always available, and offer immediate control of scene selection, play/record transport, tap tempo, user interface shortcuts.
- Fader layers and fader view: 4 layers of fader assignments allow immediate access to input channels 1-10 and 11-20, to FX returns and outputs. The FADER VIEW button shows all fader details on a single screen view.
- Motorized faders: 11 x 100-mm motorized faders allow precise mix control with immediate visual feedback. Special care has been taken to minimize movement noise.
- Cue monitor: The unit can be monitored at any time via the CUE bus, which features a real-time analyzer (RTA) and output via headphones.
- Capacitive touch screen: A highly responsive 5-inch TFT touchscreen offers intuitive navigation of all the available features and can be optionally paired with an external tablet for extended control.
- USB host ports: Two USB host ports on the top panel are available for WiFi dongles, USB-MIDI devices, and USB mass storage devices that can be used for stereo audio record/ playback, system backups, and firmware updates.
- SD card multitrack section: An integrated SD card multitrack engine offers a maximum of 20 simultaneous tracks at 24-bit, 48 kHz, with extensive routing options.
- 14 Buses: The MIX SELECT buttons assign one of the 14 mixes to the physical faders; choosing among four effect buses, 8 MIX buses, and the MAIN mix bus. The MASTER fader is always associated with the output level of the selected bus.
Record and Playback
The M 20X offers several options for recording and playback.- Internal SD Multitrack Record/Playback: All 20 inputs can be recorded in multitrack WAV format on the local SD card, and played back as channel inputs, no computer required.
- Multichannel USB 2.0 Audio Interface: A 24-track, 24-bit, 48-kHz low-latency USB audio interface is available and allows access to all inputs and several internal signal nodes. Extensive routing options allow both offline soundcheck and host-based effects processing.
- USB Srive Stereo Player/Recorder: A flexible stereo file player can access USB mass storage devices (up to four different drives), with arbitrary sample rate, in MP3, WAV, and AIFF formats
