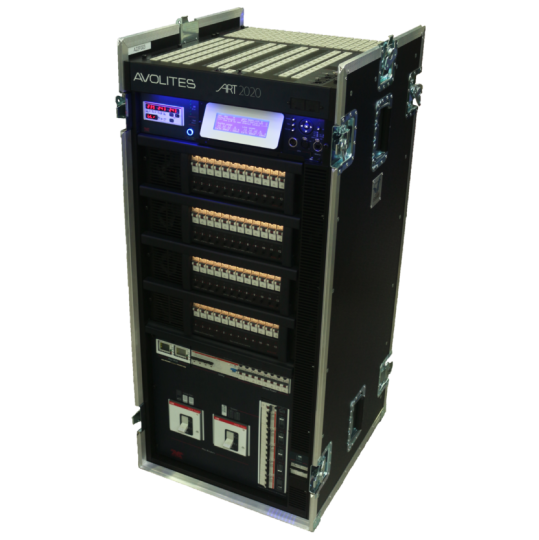

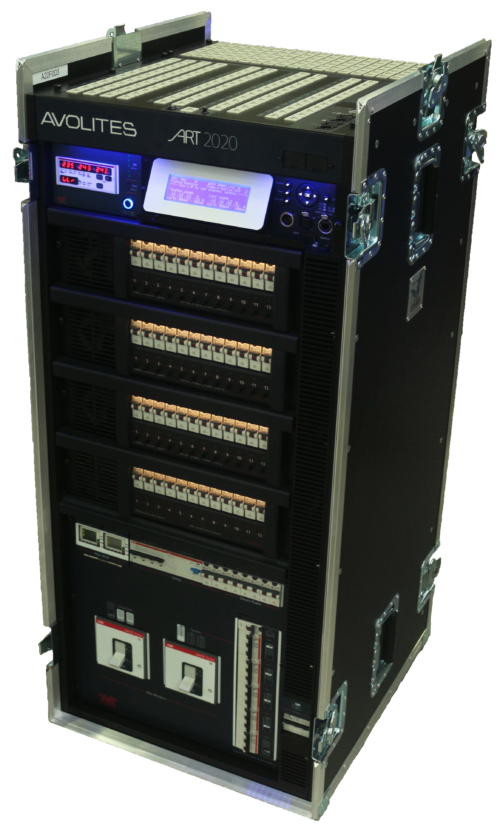

Avolites ART 2020
Product code:
Avo-ART-2020
The latest evolution of the industry's favourite dimming and power distribution system
| 48 RCBO-protected channels | |
| 4-bay modular system with Dimming, Distribution and Flex options | |
| S-ACN and Art-Net in addition to DMX control | |
| Configure threshold and delay on main and loop breakers | |
| Dimensions: 120 cm x 62 cm x 102 cm | |
| Net Weight: 215 Kg |
More information
Key features
- Designed with contributions from leading industry users, and 40 years of dimming experience
- Removes the need for separate mains distribution and DMX splitters
- User-exchangeable modules for dimming, distribution, remote switched power or Flex
- Configurable main input and loop out breakers offer variable over-current, earth-leakage and trip time, preventing large-scale outages during live performances
- Test connected mains before the system energises. Over-voltage or missing neutral will not allow the system to energize

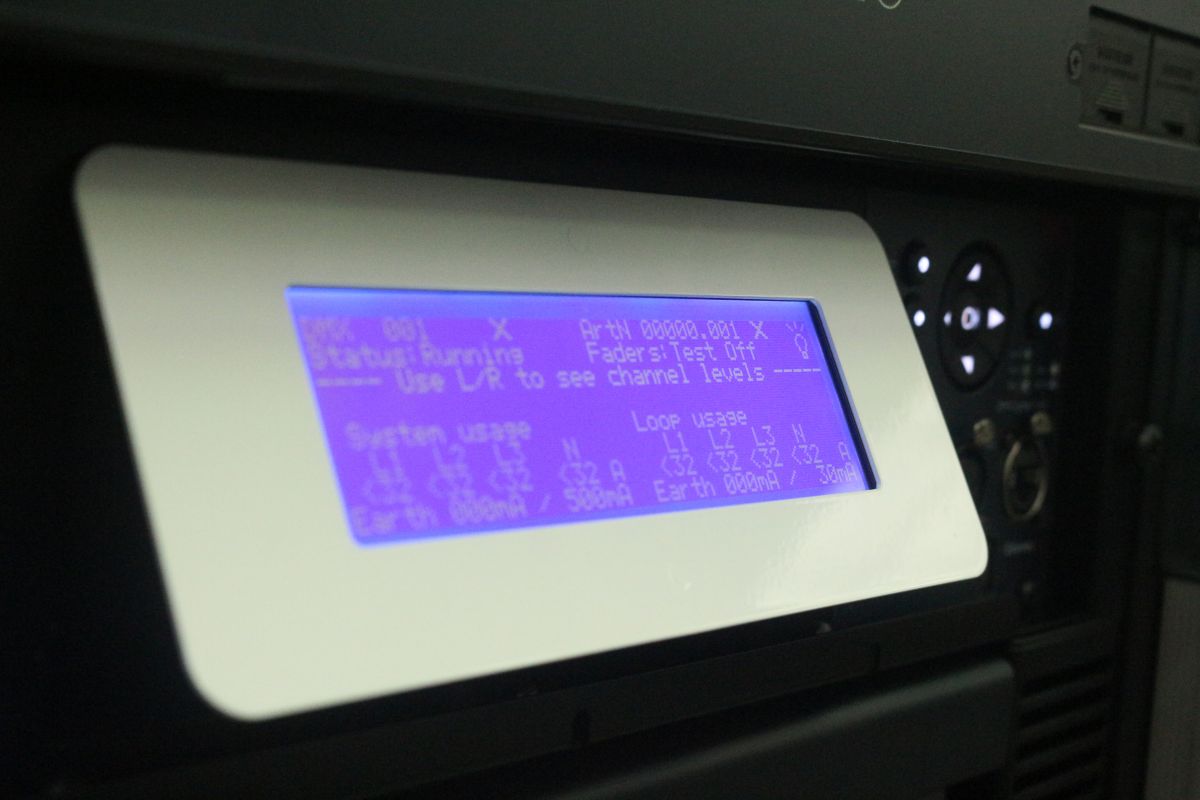

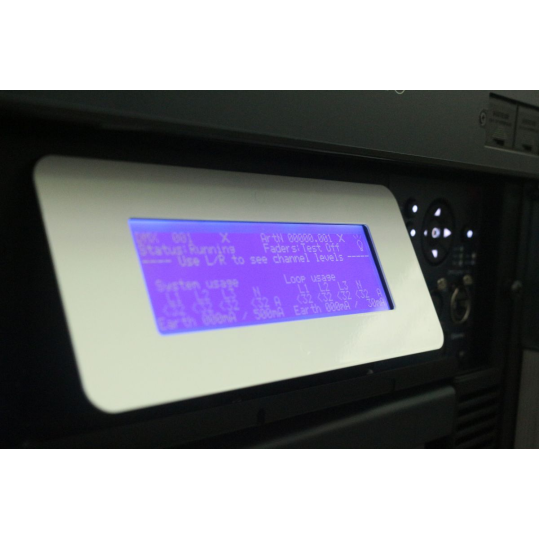

- Controller displays: Per phase current, neutral current, earth leakage for both the system and loop out
- Digital meter displays Var and Powerfactor, important variables when working with generators
- Wieland ST-17 (2-pin) or ST-18 (3-pin) patch system fitted offering 120 outlet circuits from the 48 channels via Socapex or Harting multi-core connectors
- Configurable rack lighting provides convenient illumination of all controls and connectors, as well as drawing attention to faults
- Control via 5-pin XLR DMX, Art-Net or S-ACN
Specification:

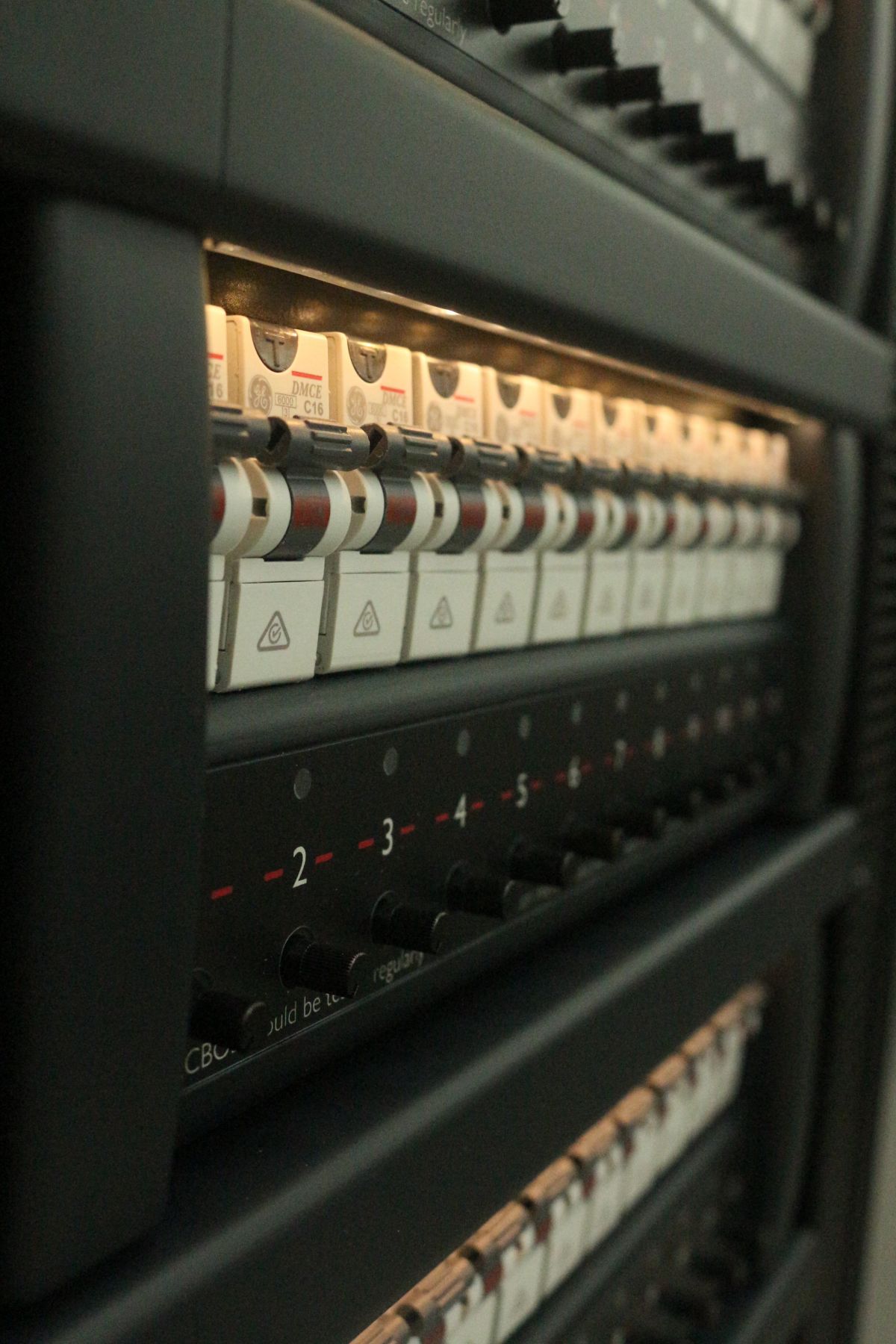

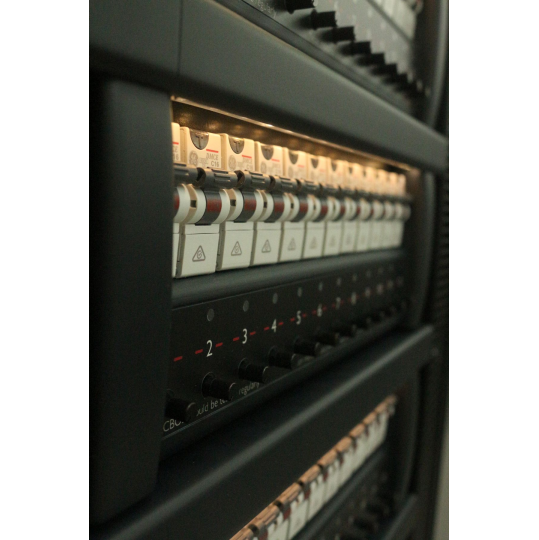

- 30mA European-made RCBO on every channel
- Live earth-leakage monitoring
- 48 x 16amp channels
- Main and loop breakers adjustable trip current of 125A, 160A, 250A and 320A
- Loop out and System input RCB protection with current and trip delay adjustment
- Multi-pin connector load tester built in
- 2 x 1-in 4-out DMX opto splitter
- Build in two Universe Art-net and sACN Node with 4 outlets per universe
- Dedicated FOH 32A RCBO and connector
- USB phone charging point
- RGB rack lighting, backlit switches and illuminated breakers
- Designed to meet new standards in temporary electrical systems
