Avolites Power Cube
Product code:
Avo-Pow-Cub
A complete Dimming, Mains and Data Distribution Solution in one compact box!
| 12 dimmer circuits at 10A | |
| 6 combined dimmer/fixed mains at 10A | |
| 6 fixed mains at 16A | |
| Custom flight case for portability | |
| Dimensions: 445mm x 510mm x 520mm | |
| Net Weight: 43Kg |
More information
- Generative, animation-based pixel mapping
- Quicksketch labelling for ultimate personalisation
- Powerful multi-user networking with any Titan console
- Create huge effects in seconds with Key Frame Shapes
- Feature-packed cue lists supporting macros, tracking, autoloads, timecode and more
- Expand DMX channel capacity with Titan Net Processors
- Synergy-ready. Add any Ai product to unlock seamless video integration
Specification:

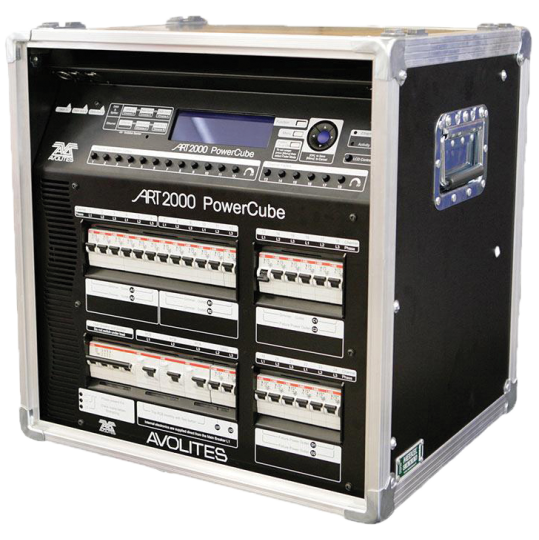

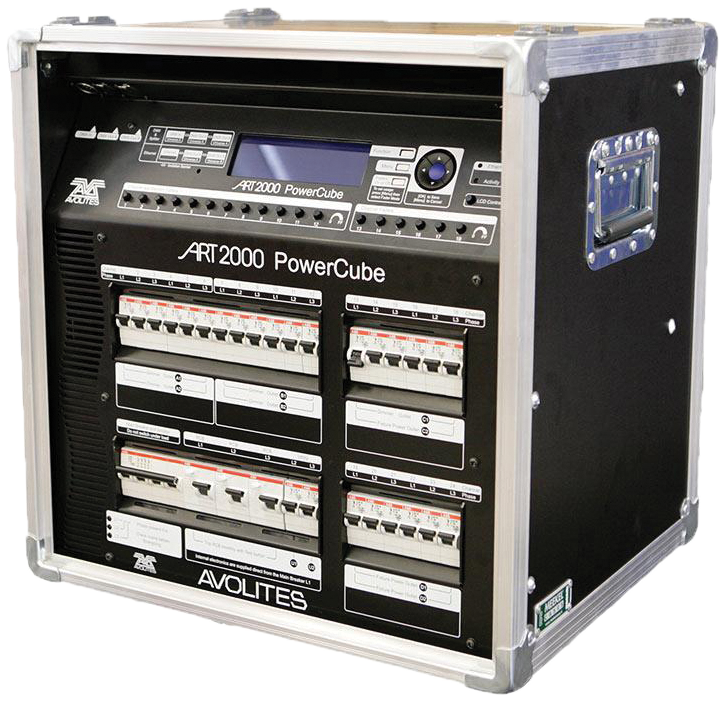

- Dimmer and distribution channels- 10A C type ABB breakers
- Captive Mains tail of 1.2m H07R 5x 10mm2 fitted with a 63A 5 pin Cee connector
- Mains supplies either 63A 3phase+N TN-S or 63A single Phase +N
- Mains inlet breaker 63A D type ABB breakers (10-15x I nominal inrush current)
- Three individual single phase 63A 30mA residual current breakers to protect operators.

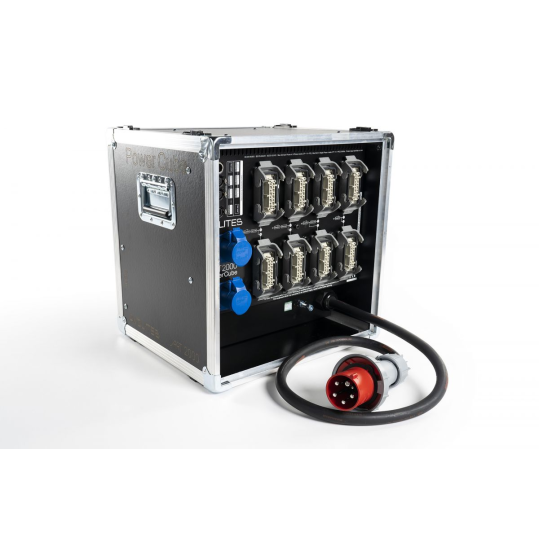

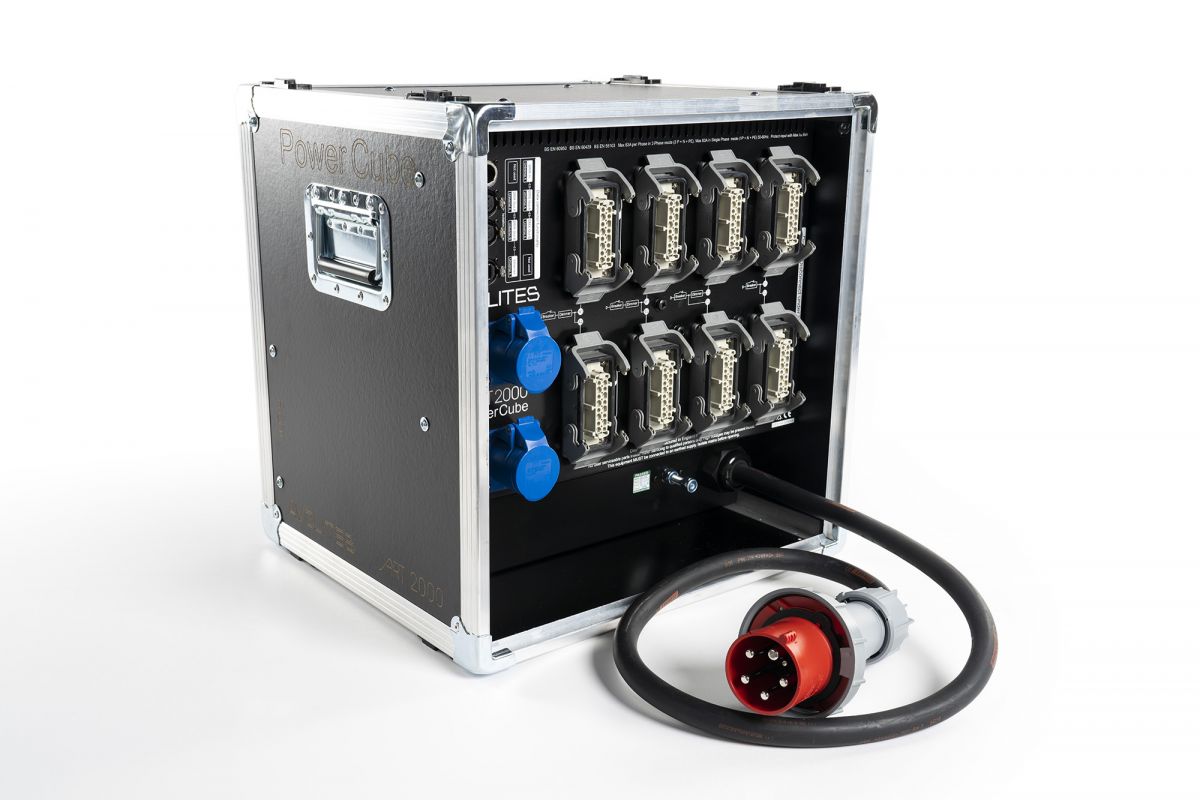

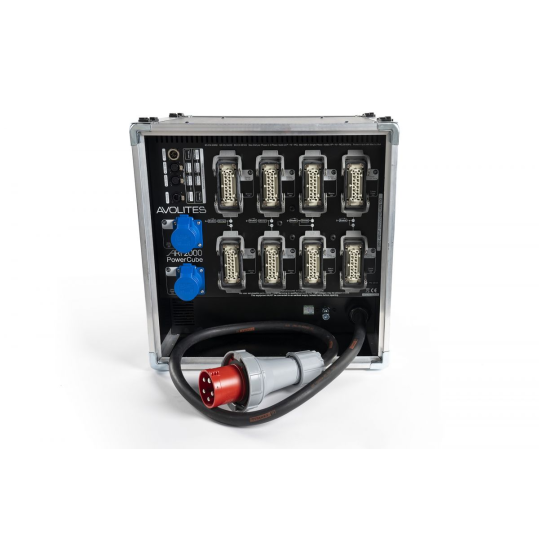

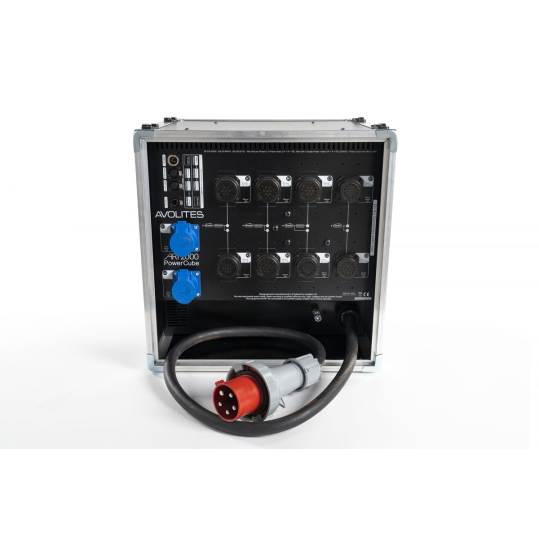

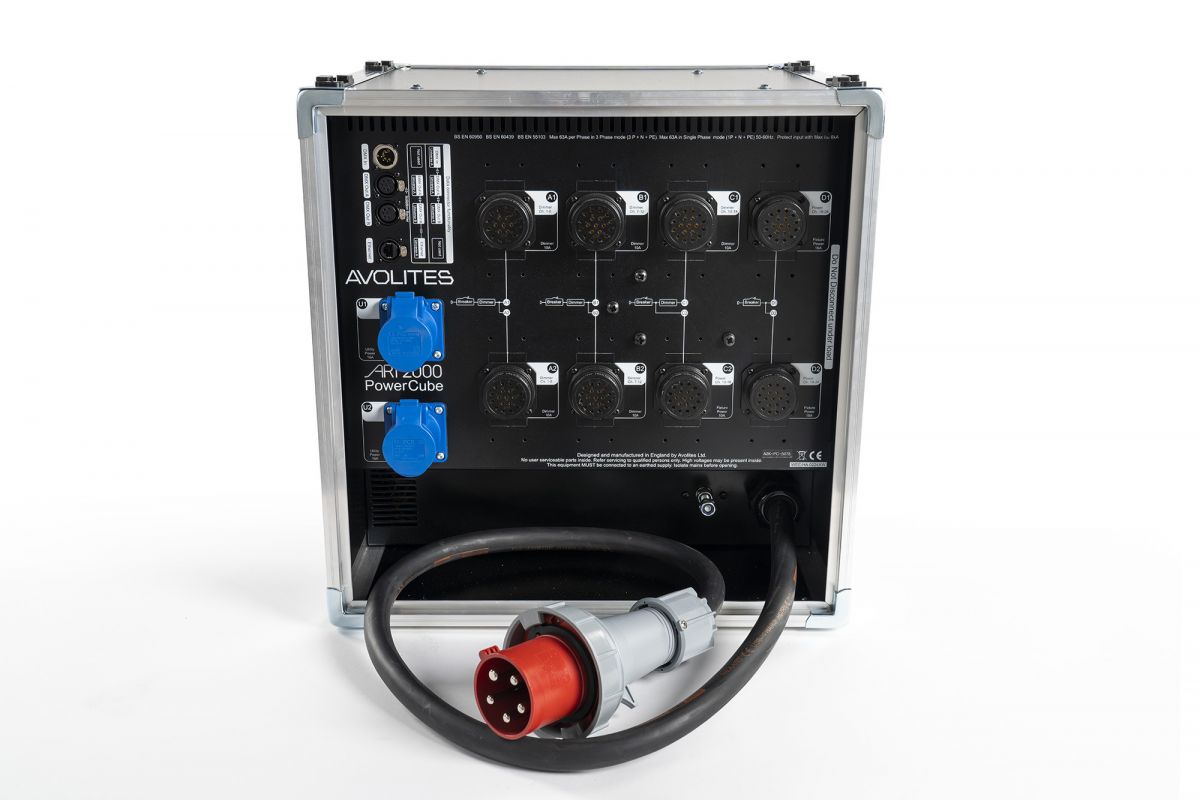

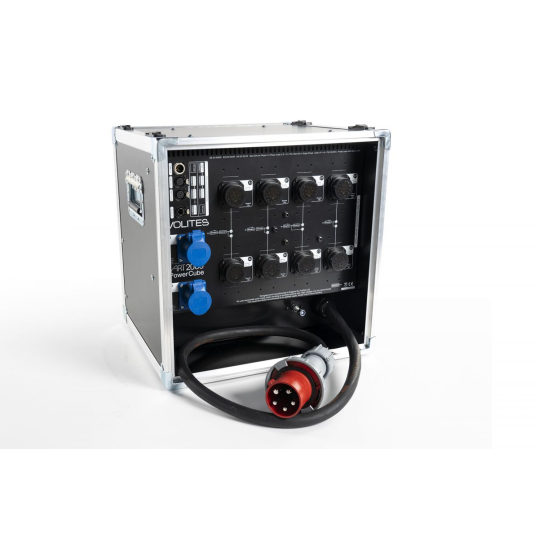

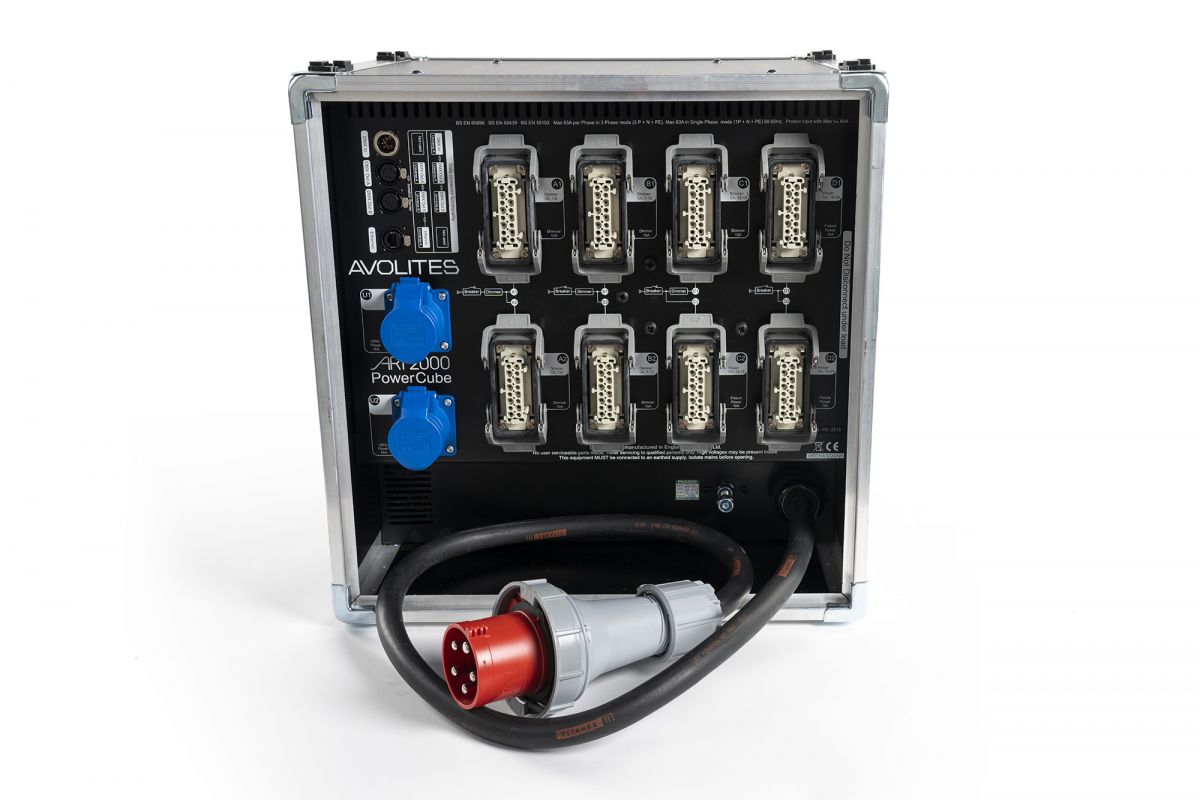

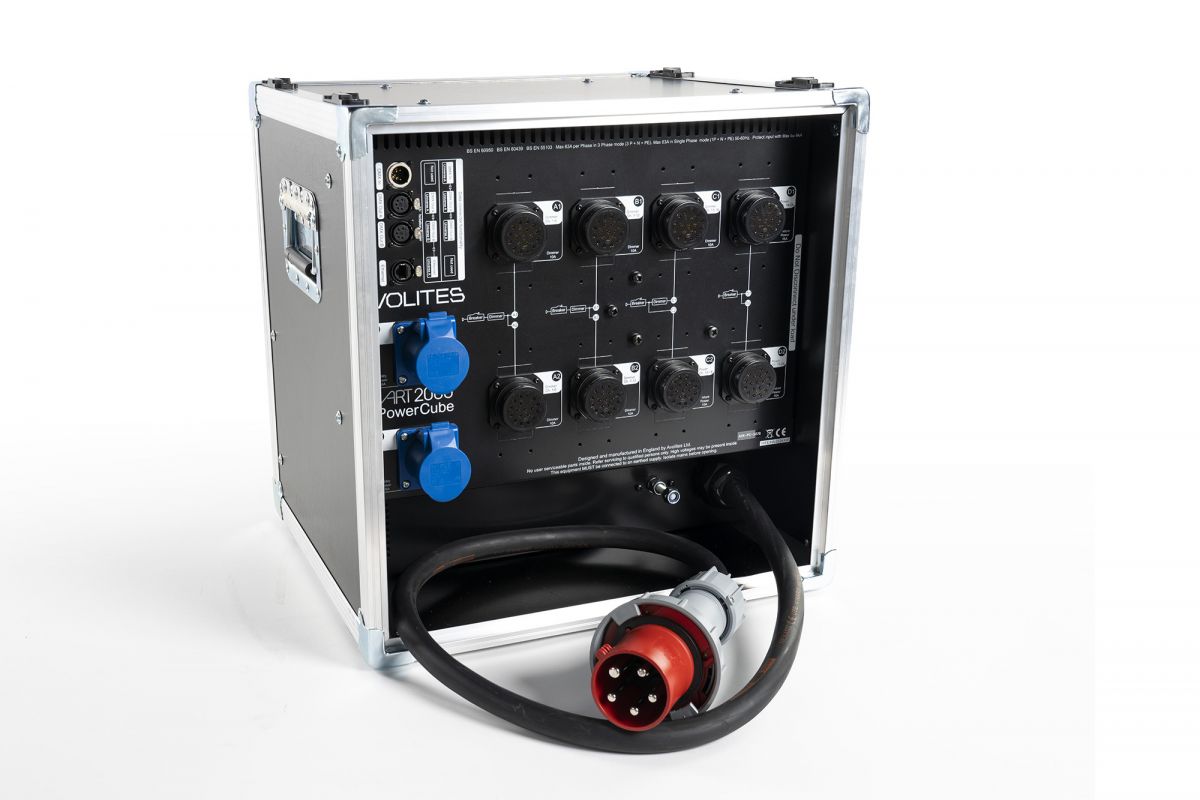

- Socapex or Harting output connectors available
