| Type | Laser engine |
| IP rating | IP20 |
| Power | 2900 Lumen Output |
| Colour | 2500K to 6500K |
| Zoom | 1° - 7° |
| Life expectancy | 20000 hours |

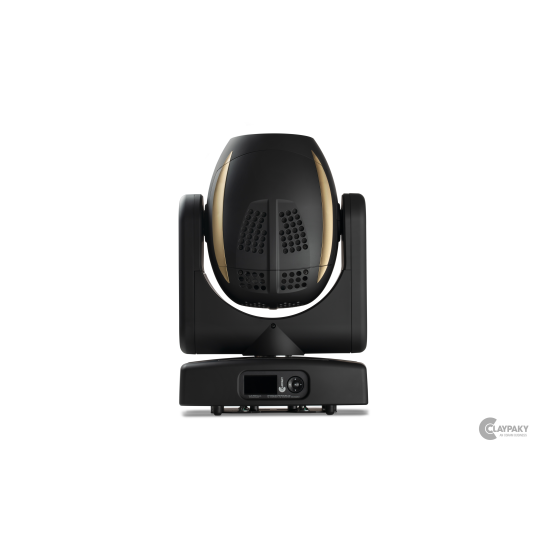

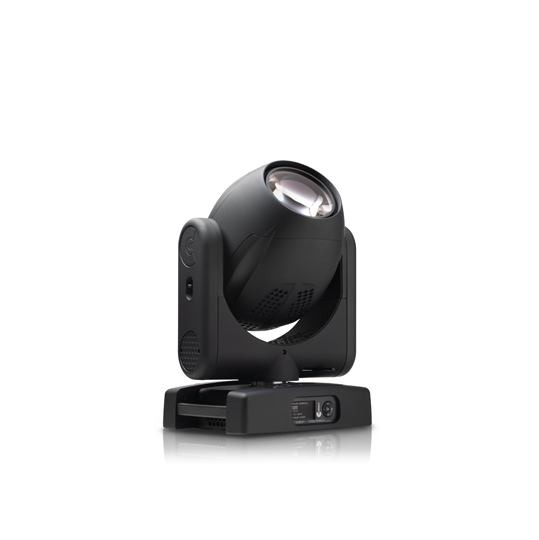

The Xtylos is a compact beam moving light with unique optical and chromatic characteristics, making use of a tailor-made RGB laser source (Patent Application filed). This laser source, lasting for 20,000 hours, is enclosed in a reliable, safe and fully sealed module and it is the powerful engine of an incredible array of colours: in contrast to the subtractive mixing used with discharge lamps, coloured light beams are as bright as a white light beam!
The range of effects features two gobo wheels - with 7 rotating gobos and 12 static gobo slots - a wheel with 3 prisms, and a sixteen facet prism on a dedicated channel which can be overlapped with the prism wheel. The beam aperture can be steered in the range 1°-7°.
The Xtylos is definitely the most dynamic light on the market. It is the first moving head light with a laser light source, and this opens up new, surprising prospects for the development of the entire entertainment lighting world.
- Light Source: Tailor-made laser engine, enclosed in a sealed module
- Long lasting light source (20,000 hours) with minimal decay
- Solid, flat field, saturated, ultraconcentrated light beam without any visible hotspots.
- Aperture: 1°-7° range (up to 0.5° using beam diameter reducers)
- RGB additive colour mixing, with exclusive Turbo-colours
- Unequalled colour consistency both across different fixtures and during lifetime.
- Exclusive BLazer graphic effects
- One wheel with 7 rotating gobos
- One wheel with 12 static gobo slots: 5 gobos and 7 beam reducers
- One wheel with 3 prisms and 1 soft-edge frost filter
- Sixteen-facet prism on a dedicated channel
- Unrivalled effect and colour change speed
- Compact housing with easy accessibility to all modules
- Extremely fast pan-tilt movements
- Ultra-precise 24-bit digital dimmer
RISK GROUP 3 - Warning: possibly hazardous optical radiation emitted from this product. Do not look at operating lamp source. Eye injury may result. EN/IEC 62471 - Hazard distance: refer to the manual
CLASS 1 laser product: EN/IEC 60825-1 2014
